MRCOOL DIY 4th Gen Mini Split - 27K BTU 3-Zone Ductless Heat Pump with 9K + 9K + 12K Air Handlers
MRCOOL DIY 4th Gen Mini Split - 27K BTU 3-Zone Ductless Heat Pump with 9K + 9K + 12K Air Handlers
Low stock
SKU:DIYM327HPW01C00
Couldn't load pickup availability
Upgrade your home's comfort with the MRCOOL DIY 4th Gen Mini Split, a high-performance 27,000 BTU 3-zone ductless heat pump designed for effortless DIY installation. This system includes a 27K BTU condenser and three air handlers—two 9K BTU units and one 12K BTU—to efficiently heat and cool up to three separate zones. With Pre-Charged Quick Connect Line Sets, installation is seamless without requiring professional assistance. Experience enhanced climate control with smart WiFi connectivity, energy efficiency up to 22 SEER2, and the ability to heat in temperatures as low as -13°F.
Key Features
- 3-Zone Heating & Cooling – 9K + 9K + 12K BTU air handlers efficiently regulate temperatures in multiple rooms.
- DIY Installation – Patented Pre-Charged Quick Connect Line Sets simplify setup with no vacuuming required.
- Gold Fin® Condenser – Corrosion-resistant design ensures durability, even in coastal environments.
- High Efficiency – Achieves up to 22 SEER2 and 8.2 HSPF-5, reducing energy costs.
- All-Season Comfort – Operates in temperatures as low as -13°F for heating and up to 122°F for cooling.
- Smart Control – Control your system remotely with the SmartHVAC app or connect with Alexa & Google Assistant.
- Quiet Operation – Low indoor noise levels for undisturbed comfort.
What’s Included
- (1) MRCOOL 4th Gen 27K BTU Multi-Zone Condenser (DIY-MULTI3-27HP230C)
- (2) 9K BTU MRCOOL 4th Gen Wall-Mount Air Handlers (DIY-09-HP-WMAH-230C25)
- (1) 12K BTU MRCOOL 4th Gen Wall-Mount Air Handler (DIY-12-HP-WMAH-230C25)
- (3) 16 ft. Pre-Charged Quick Connect Line Sets

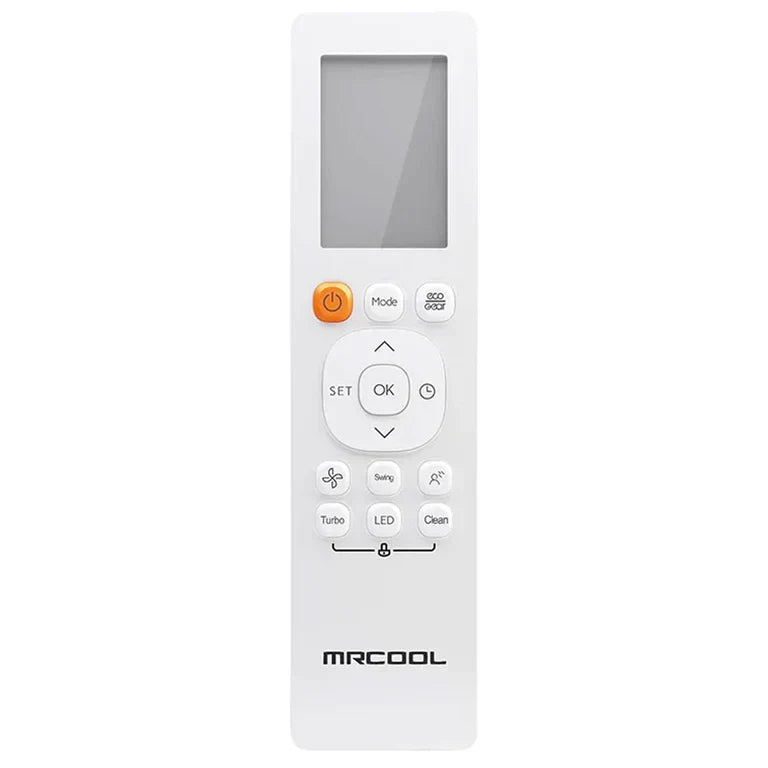

- (3) Remote Controls
- (3) Wall Sleeves
Technical Specifications
Condenser (27K BTU)
- Cooling Capacity: 27,000 BTU
- Heating Capacity: 27,000 BTU
- Voltage: 208-230V/60Hz
- Efficiency: 22 SEER2, 8.2 HSPF-5
- Outdoor Temperature Range: Cooling: 5°F - 122°F, Heating: -13°F - 75.2°F
- Dimensions: 37.24"W x 16.14"D x 31.89"H
- Warranty: 7 Years Compressor / 5 Years Parts
Air Handler (9K BTU)
- Cooling/Heating Capacity: 9,000 BTU
- Coverage Area: 180 - 375 sq. ft.
- Modes: Auto, Cool, Heat, Dry, Fan-Only, Sleep
- Smart Control: WiFi-enabled, works with Alexa & Google Assistant
- Dimensions: 31.57"W x 7.44"D x 11.69"H
- Warranty: 5 Years Parts
Air Handler (12K BTU)
- Cooling/Heating Capacity: 12,000 BTU
- Coverage Area: 376 - 500 sq. ft.
- Modes: Auto, Cool, Heat, Dry, Fan-Only, Sleep
- Smart Control: WiFi-enabled, works with Alexa & Google Assistant
- Dimensions: 31.57"W x 7.44"D x 11.69"H
- Warranty: 5 Years Parts
Line Set
- Length: 16 ft.
- Liquid Line: 1/4"
- Suction Line: 1/2"
- Pre-Charged with R-410A Refrigerant
