MRCOOL DIY 4th Gen 48K BTU 5-Zone Mini Split with 9K + 9K + 9K + 9K + 9K Air Handlers
MRCOOL DIY 4th Gen 48K BTU 5-Zone Mini Split with 9K + 9K + 9K + 9K + 9K Air Handlers
Low stock
SKU:DIYM548HPW00C00
Couldn't load pickup availability
Upgrade your home's climate control with the MRCOOL DIY 4th Gen 48K BTU 5-Zone Mini Split System, designed for multi-room cooling and heating with five independent wall-mounted air handlers. This ductless mini split is perfect for residential and commercial applications, providing customized comfort in up to five zones. Featuring pre-charged Quick Connect line sets, WiFi smart controls, and high energy efficiency, this system is an ideal DIY-friendly solution for superior climate control.
Key Features
Condenser (48K BTU)
- DIY-Friendly Installation – Pre-Charged Quick Connect Line Sets eliminate the need for vacuuming or special tools.
- Durable Gold Fin® Coating – Prevents corrosion, ideal for coastal and humid environments.
- High Energy Efficiency – 20.5 SEER2 and 8.5 HSPF-5 for significant energy savings.
- Reliable in Extreme Temperatures – Operates efficiently in temperatures as low as -13°F.
- Comprehensive Warranty – 7-year compressor warranty and 5-year parts warranty.
9K BTU Wall Mount Air Handlers (x5)
- Independent Climate Zones – Set different temperatures for each zone, enhancing comfort and energy savings.
- Versatile Operating Modes – Choose from Cool, Heat, Auto, Dry (dehumidify), Fan-Only, Quiet, and Sleep Mode.
- Smart Home Compatibility – Works with WiFi, Alexa, and Google Assistant for seamless control.
- Minimal Maintenance – Features washable filters and self-cleaning function for easy upkeep.
- Quiet Operation – Low noise levels ensure a comfortable indoor experience.
Pre-Charged Line Sets for Effortless Installation
- Plug-and-Play Setup – Pre-filled with R-410A refrigerant, eliminating complex setup procedures.
- Leak-Proof Quick Connect Fittings – Secure, factory-sealed connections prevent refrigerant leaks.
- Flexible Installation – Includes five 16 ft. 1/4 x 1/2 line sets, adaptable to various room layouts.
Specifications
48K BTU Multi-Zone Condenser
- Cooling Capacity: 48,000 BTU
- Heating Capacity: 48,000 BTU
- Zone Capacity: Up to 5 zones
- Outdoor Operating Temp (Cooling): 5°F - 122°F
- Outdoor Operating Temp (Heating): -13°F - 75.2°F
- SEER2: 20.5
- EER2: 11
- HSPF-4: 11
- HSPF-5: 8.5
- Power Supply: 208V-230V/60Hz
- Minimum Circuit Ampacity: 40-60A
- Condenser Dimensions: 37.48"W x 16.34"D x 52.48"H
- Registered Warranty: 7 years on compressor, 5 years on parts
9K BTU Wall Mount Air Handlers (x5)
- Cooling Capacity: 9,000 BTU
- Heating Capacity: 9,000 BTU
- Coverage Area: 180 - 375 sq. ft. per unit
- Installation: Wall-mounted
- Modes: Auto, Cool, Heat, Dry, Fan, Quiet, Sleep
- Power Supply: 208V-230V/60Hz
- Dimensions: 31.57"W x 7.44"D x 11.69"H
- Registered Warranty: 5 years on parts, 1 year on remote
Line Sets
- (5) 16 ft. 1/4 x 1/2 Pre-Charged Line Sets – Compatible with 9K, 12K & 18K BTU Air Handlers
- Pre-Charged with R-410A Refrigerant
- Registered Warranty: 5 years on parts
What’s in the Box?
✔ 1 x MRCOOL DIY 4th Gen 48K BTU Multi-Zone Condenser
✔ 5 x 9K BTU Wall Mount Air Handlers
✔ 5 x 16 ft. Pre-Charged Line Sets (1/4 x 1/2)

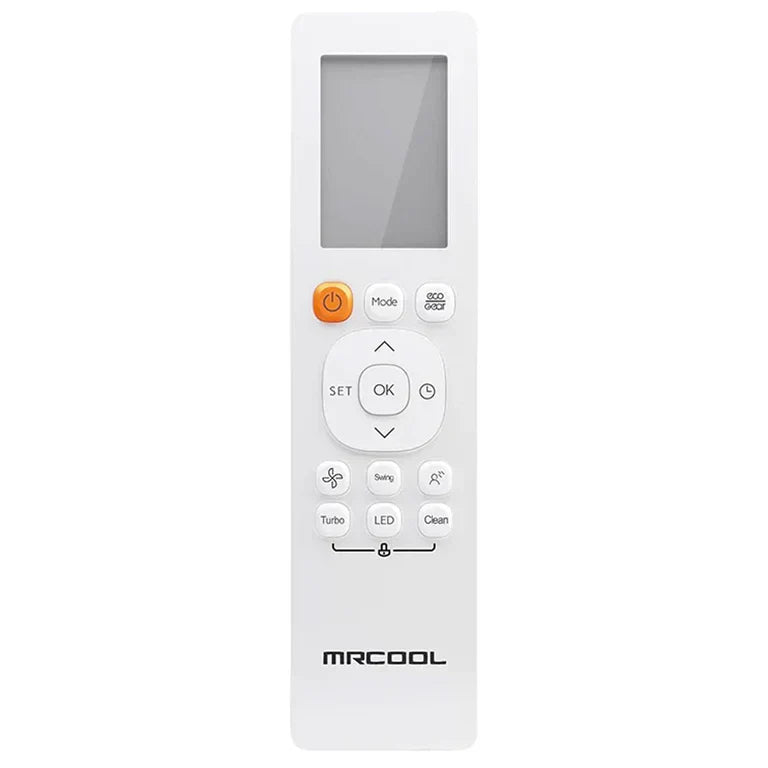

✔ 5 x MRCOOL Remote Controls
✔ 5 x Wall Sleeves
Why Choose MRCOOL DIY 4th Gen Multi-Zone Mini Split?
- DIY Installation – Save on installation costs with pre-charged Quick Connect Line Sets.
- Smart Controls – Adjust settings remotely with WiFi, Alexa, or Google Assistant.
- Energy Efficient – 20.5 SEER2 rating ensures optimal energy savings.
- All-Weather Performance – Operates in extreme hot and cold conditions.
- Sleek & Modern Design – Wall-mounted units blend seamlessly into any space.
