MRCOOL Universal 4 to 5 Ton (48000-60000 BTU) 18 SEER Central Heat Pump Condenser

Step into the next generation of HVAC technology with the MRCOOL 4 to 5 Ton 17 SEER2 Universal Central Heat Pump Condenser. Designed for exceptional comfort and performance, this ultra-quiet unit delivers rapid heating and cooling, superior energy efficiency, and long-term savings—all while maintaining whisper-quiet operation.

Compact, Powerful, and Efficient

Perfect for homes with limited space or sound-sensitive areas, this unit provides a powerful 48,000 to 60,000 BTUs of capacity. It offers up to 80% heating output even in subzero temperatures, significantly reducing or eliminating the need for a gas furnace or auxiliary heat strip.

Advanced Inverter Technology

The advanced DC inverter system intelligently adjusts compressor speed, preventing extreme fluctuations and extending the life of the unit. This results in smoother operation, greater energy savings, and enhanced indoor comfort all year round.

All-Weather Performance

Engineered with enhanced two-stage enthalpy technology, this heat pump keeps your home warm even when outside temperatures dip as low as -22°F. The intelligent defrost system boosts heating efficiency and ensures a reliable performance in the harshest conditions.

Built for Peace of Mind

Equipped with smart protection features—such as high/low pressure protection, high-temperature discharge protection, and IPM module safeguards—this unit is built to run safely and efficiently for years to come.

Eco-Friendly Refrigerant

Using environmentally friendly, chlorine-free R-410A refrigerant, this unit helps reduce environmental impact without compromising performance. It also supports compatibility with both electronic and thermal expansion valves for versatile installation and efficient refrigerant flow control.

Flexible Installation Options

Pair with the MRCOOL Universal Central Air Handler using the No-Vac Quick Connect line for fast, easy installation, or use traditional fittings depending on your setup. No-Vac Quick Connect eliminates the need to vacuum and charge the refrigerant line, saving time and hassle.

Smart Compatibility

This unit uses 24V non-communication control technology, allowing seamless integration with third-party air handlers and smart thermostats like Nest or other WiFi-enabled options.

Certified Quality You Can Trust

Designed for use with a complete ductwork system, the MRCOOL Universal Central Heat Pump is AHRI and ETL certified—guaranteeing top-tier quality, performance, and safety.

What's Included:

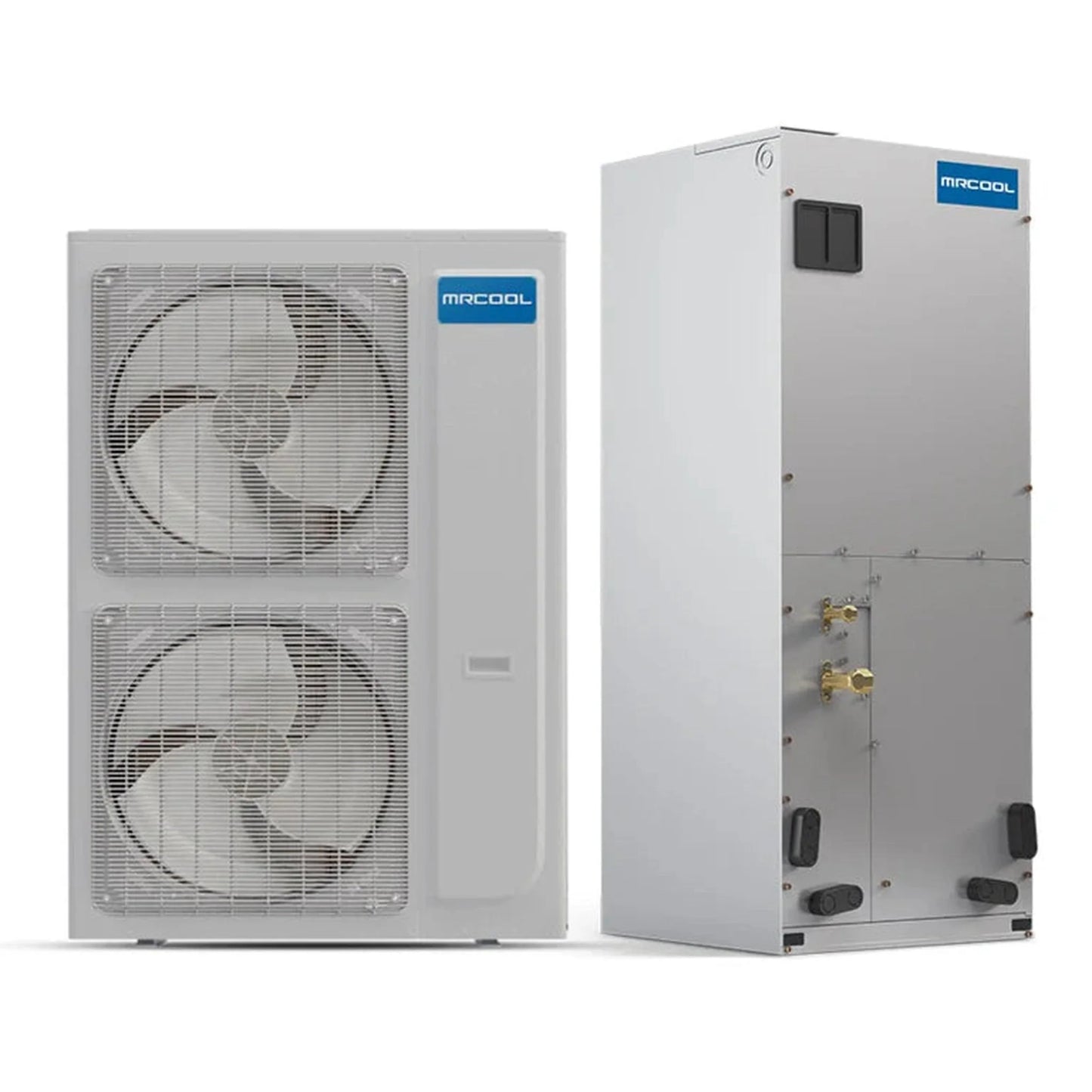

✔ MRCOOL Universal 4-5 Ton Heat Pump Condenser (MDUO18048060)
✔ MRCOOL Universal High ESP 4-5 Ton Air Handler (MDUI18048060E)
✔ Pre-charged with eco-friendly R-410A refrigerant (Linesets not included)

Key Features

✔ 4-5 Ton capacity – flexible mode selection (4 Ton: 18 SEER / 5 Ton: 17 SEER)
✔ Energy-efficient DC inverter technology for maximum savings
✔ Operates efficiently in extreme temperatures
✔ Fast heating and cooling response for enhanced comfort
✔ Quiet operation with internal fan blade design
✔ Works with third-party thermostats (Wi-Fi, Nest, Honeywell, and more)
✔ Multiple installation configurations (upflow or horizontal)
✔ Fire-proof electrical box with anti-electric shock protection
✔ Easy-to-clean metal filter (fire-resistant and corrosion-proof)
✔ Pre-charged condenser for simplified installation
✔ ETL and AHRI certified for industry compliance
✔ 10-Year Registered Limited Warranty for peace of mind

Specifications

Performance Data:

• Cooling Efficiency: 4 Ton Mode: 18 SEER, 5 Ton Mode: 17 SEER
• Refrigerant Type: R-410A (Pre-charged)
• Voltage: 208-230V, 60Hz, 1 Phase
• Smart Compatibility: Wi-Fi, Nest, Honeywell, third-party air handlers & thermostats

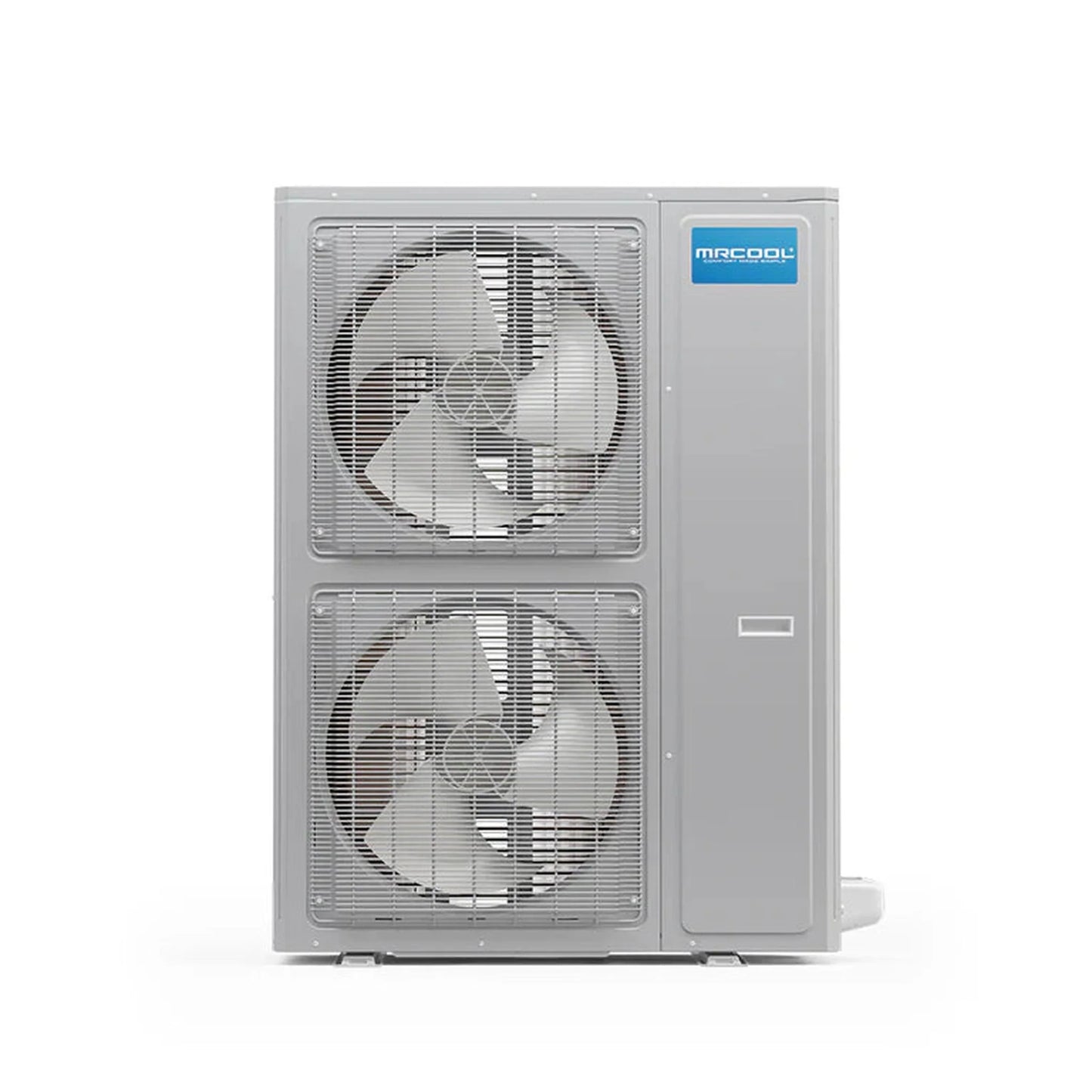

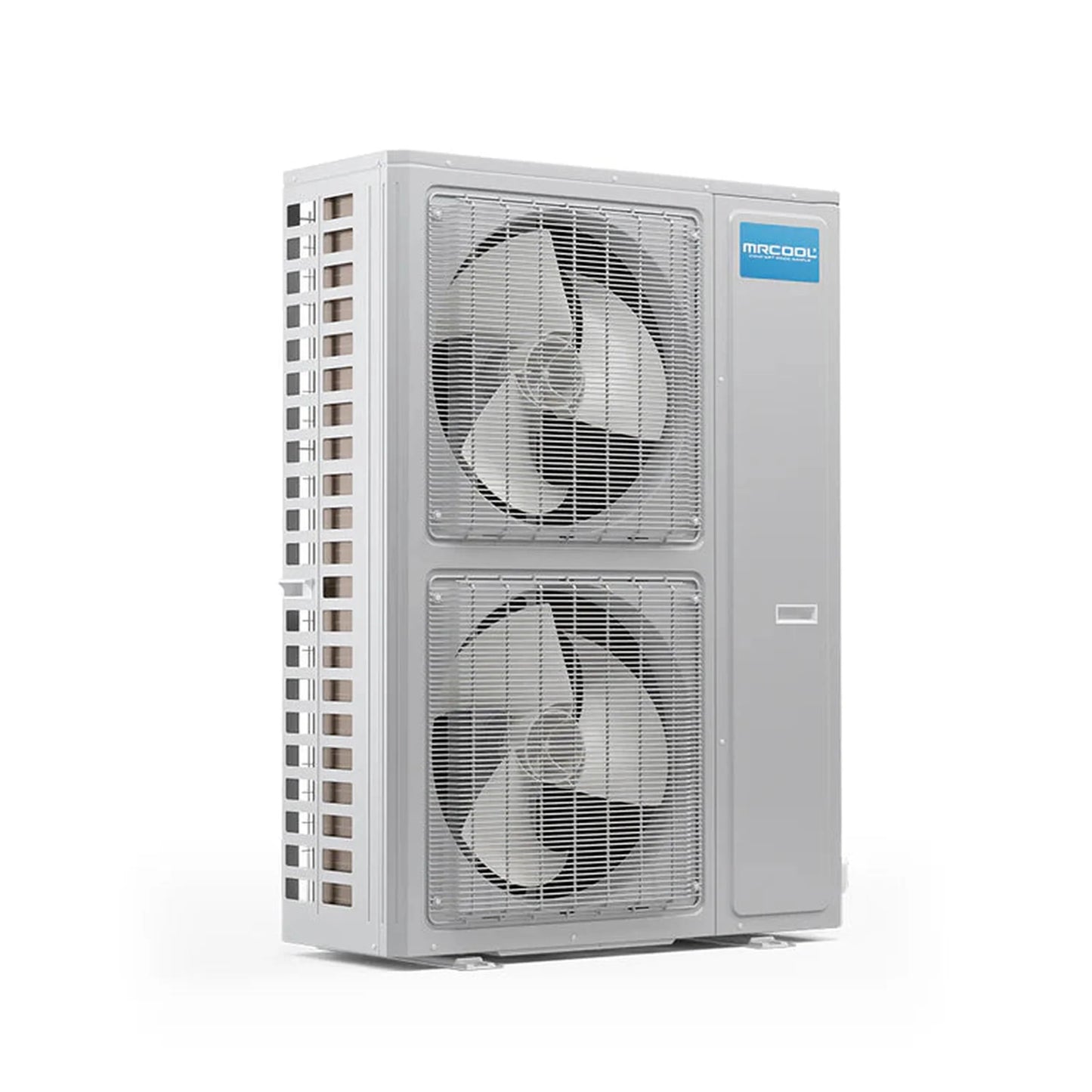

Condenser (MDUO18048060):

• High-efficiency DC inverter compressor
• Fast cooling and heating performance
• Internal fan blade for low-noise operation
• Pre-charged for easy installation
• ETL & AHRI certified

Air Handler (MDUI18048060E):

• High-efficiency DC fan motor for quiet, powerful airflow
• Supports three connection types:
  • Pre-Charged No-Vac
  • Sweat Braze Fitting
  • Flare Fitting
• Multi-position installation: Upflow or horizontal
• Two-step condensation protection
• Fire-proof electrical box with anti-electric shock protection
• Durable, corrosion-resistant metal filter

Smart & Compliance Features

✔ Energy-efficient DC inverter motor reduces power consumption
✔ Operates efficiently across extreme temperature ranges
✔ Pre-charged refrigerant for easy installation
✔ 10-Year Registered Limited Warranty for long-term reliability
