Pioneer 24,000 BTU 17 SEER2 Ducted Central Split Air Conditioner & Heat Pump System
Pioneer 24,000 BTU 17 SEER2 Ducted Central Split Air Conditioner & Heat Pump System
Low stock
SKU:DYR1824GMFI18R
Couldn't load pickup availability
The Pioneer 24,000 BTU Ducted Central Split System is a high-efficiency heating and cooling solution, delivering powerful, year-round climate control for homes up to 800 sq. ft. Featuring DC inverter technology, this Energy Star™ Cold-Climate Certified system provides optimal performance in extreme temperatures, with low-ambient heating down to -13°F and cooling in temperatures up to 122°F.
This ultra-flexible system supports long refrigerant line runs (up to 164 ft.) and vertical height differences (up to 98 ft.) for seamless integration into various home layouts. The side-discharge outdoor condenser optimizes space efficiency while offering durability in harsh weather conditions.
With variable-speed operation, the twin rotary inverter compressor adjusts output between 25% and 110%, ensuring precise temperature control while minimizing energy consumption. The included 5 kW electric strip heater provides supplemental heating for enhanced cold-weather performance.
Backed by a 5-year limited parts and compressor warranty, this system offers exceptional comfort, energy efficiency, and reliability.
Key Features
✔ 24,000 BTU cooling capacity with 17 SEER2 / 9.8 EER2 efficiency
✔ 23,000 BTU heating capacity with 8.3 HSPF2 / 3.4 COP2 efficiency
✔ Variable-speed DC inverter technology for precise climate control
✔ Energy Star™ Cold-Climate Certified for high-efficiency heating in extreme cold
✔ Low-ambient heating down to -13°F for year-round performance
✔ Full-capacity cooling up to 122°F for hot-weather reliability
✔ Side-discharge condenser for space-saving installation
✔ Supports up to 164 ft. refrigerant line length and 98 ft. height difference
✔ 5 kW electric strip heater included for supplemental heating
✔ Ultra-quiet operation – indoor unit 55 dB(A), outdoor unit 54 dB(A)
✔ AHRI-certified & ETL-listed for efficiency and compliance
✔ 5-year parts and compressor limited warranty
Specifications
Performance Data:
- Cooling Capacity: 24,000 BTU/H (Max: 26,000 BTU/H)
- Cooling Efficiency: SEER2: 17.0, EER2: 10.9
- Heating Capacity: 23,000 BTU/H (Max: 26,000 BTU/H)
- Heating Efficiency: HSPF2: 8.3, COP2: 3.4 (47°F) / 2.16 (5°F)
- Voltage: 208-230V, 60Hz, 1 Phase
- Refrigerant Type: R-410A (Pre-charged for up to 25 ft.)
- Operating Temperature Range:
- Heating: -13°F to 75°F
- Cooling: 5°F to 122°F

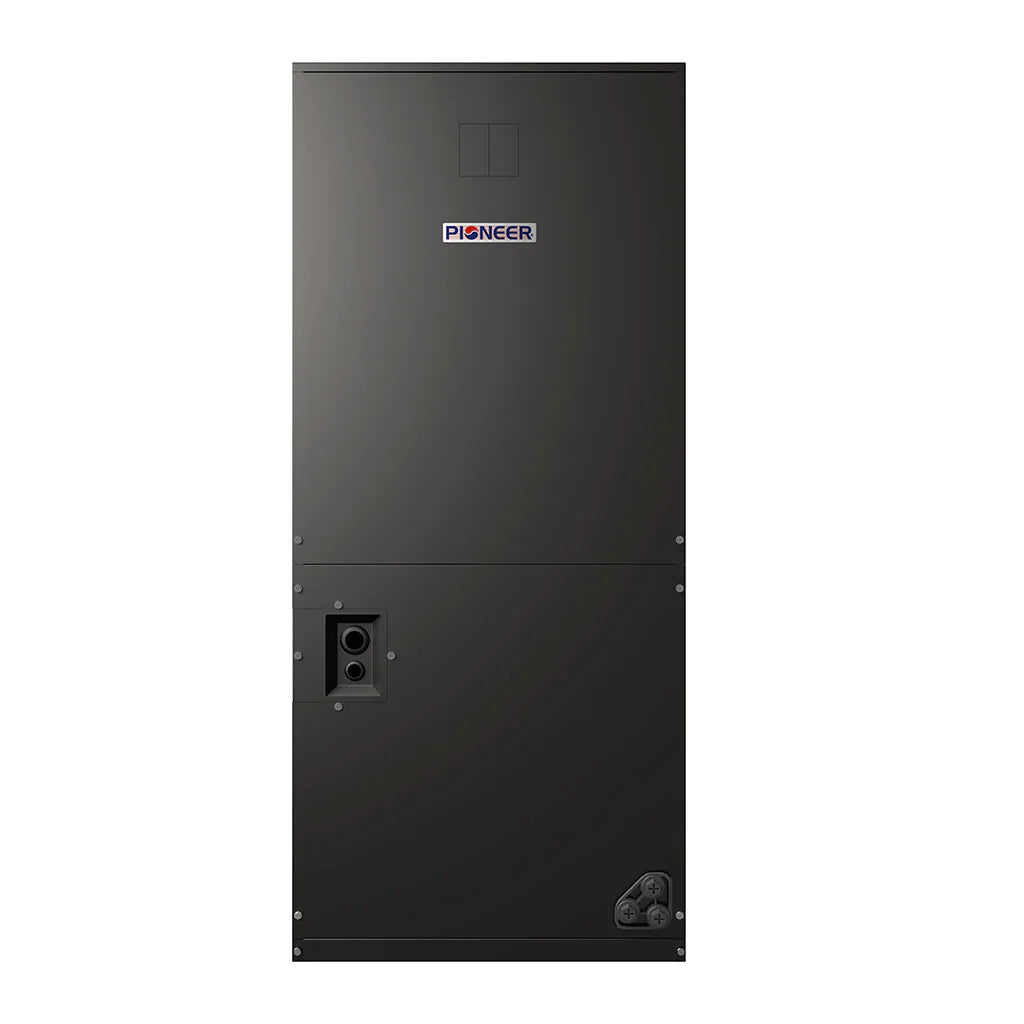

Indoor Unit (DR024GHFD18HT2):
- Airflow: 800 CFM
- Sound Level: 55 dB(A)
- Fan Motor Type: Multi-Speed ECM
- Dimensions (W×D×H): 19-5/8 × 21-5/8 × 46-1/8 in
- Weight: 136 lbs (Net) / 159 lbs (Gross)
Outdoor Unit (YH1824GHFD18R2):
- Sound Level: 54 dB(A)
- Metering Device: EXV
- Dimensions (W×D×H): 33-7/8 × 12-1/4 × 26-3/8 in
- Weight: 112 lbs (Net) / 121 lbs (Gross)
Smart & Compliance Features
✔ Energy Star™ Cold-Climate Certified for maximum efficiency
✔ High-performance twin rotary inverter compressor
✔ Pre-charged outdoor unit for easy installation
✔ Communicating system with dedicated signal transmission
✔ AHRI-certified & ETL-listed for industry compliance
✔ 5-Year Limited Parts & Compressor Warranty for peace of mind
