Pioneer | 56,000 BTU 17.5 SEER Ducted Central Split Air Conditioner Heat Pump System

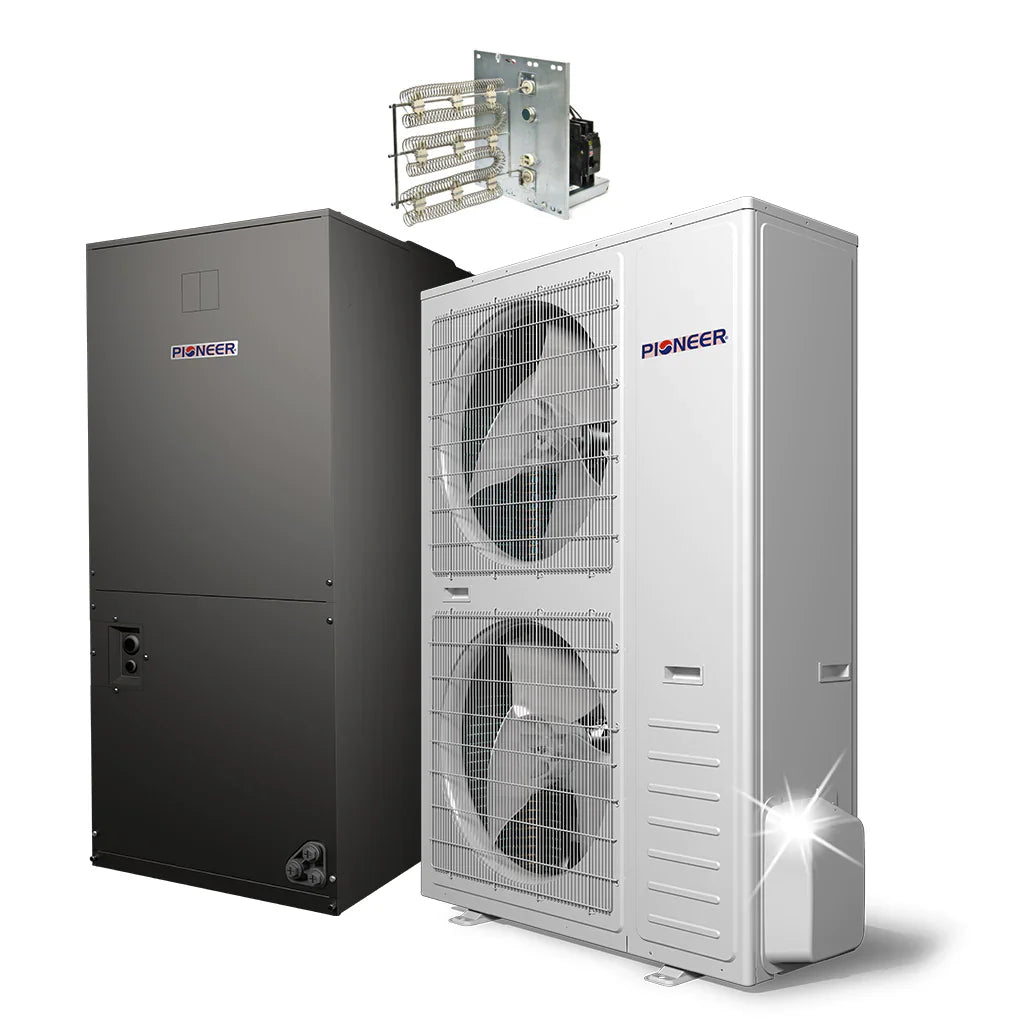

The Pioneer 56,000 BTU Ducted Central Split System is a high-efficiency, all-season HVAC solution, designed to provide powerful heating and cooling for homes up to 2,000 sq. ft. Featuring DC inverter technology, this energy-efficient system maintains consistent indoor temperatures while keeping operating costs low.

This unit is built for extreme weather performance, delivering full-capacity cooling in temperatures up to 122°F and low-ambient heating down to -13°F. The side-discharge outdoor condenser offers space-saving installation and enhanced durability in tough weather conditions.

With variable-speed operation, the twin rotary inverter compressor adjusts output between 25% and 110%, ensuring precise climate control and maximum energy efficiency. Additionally, the included 10 kW electric strip heater provides supplemental heating for cold-weather performance.

The industry-leading flexible refrigerant line routing supports refrigerant runs up to 246 ft., making this system ideal for diverse home layouts. Backed by a 5-year limited parts and compressor warranty, the Pioneer Ducted Split System is the perfect blend of performance, efficiency, and reliability.

Key Features

✔ 56,000 BTU cooling capacity with 17 SEER2 / 8.25 EER2 efficiency
✔ 56,000 BTU heating capacity with 8.5 HSPF2 / 3.1 COP2 efficiency
✔ Variable-speed DC inverter technology for efficient operation
✔ Low-ambient heating down to -13°F for year-round use
✔ Full-capacity cooling up to 122°F for extreme weather conditions
✔ Side-discharge condenser for space-saving installation
✔ Supports up to 246 ft. refrigerant line length for flexible setups
✔ 10 kW electric strip heater included for additional heat support
✔ Quiet operation – indoor unit 60 dB(A), outdoor unit 65 dB(A)
✔ AHRI-certified & ETL-listed for efficiency and compliance
✔ 5-year limited parts and compressor warranty

Specifications

Performance Data:

• Cooling Capacity: 56,000 BTU/H (Max: 59,400 BTU/H)
• Cooling Efficiency: SEER2: 17.0, EER2: 8.25
• Heating Capacity: 56,000 BTU/H (Max: 57,500 BTU/H)
• Heating Efficiency: HSPF2: 8.5, COP2: 3.1 (47°F) / 1.86 (5°F)
• Voltage: 208-230V, 60Hz, 1 Phase
• Refrigerant Type: R-410A (Pre-charged for up to 25 ft.)
• Operating Temperature Range:
  • Heating: -13°F to 75°F
  • Cooling: 5°F to 122°F

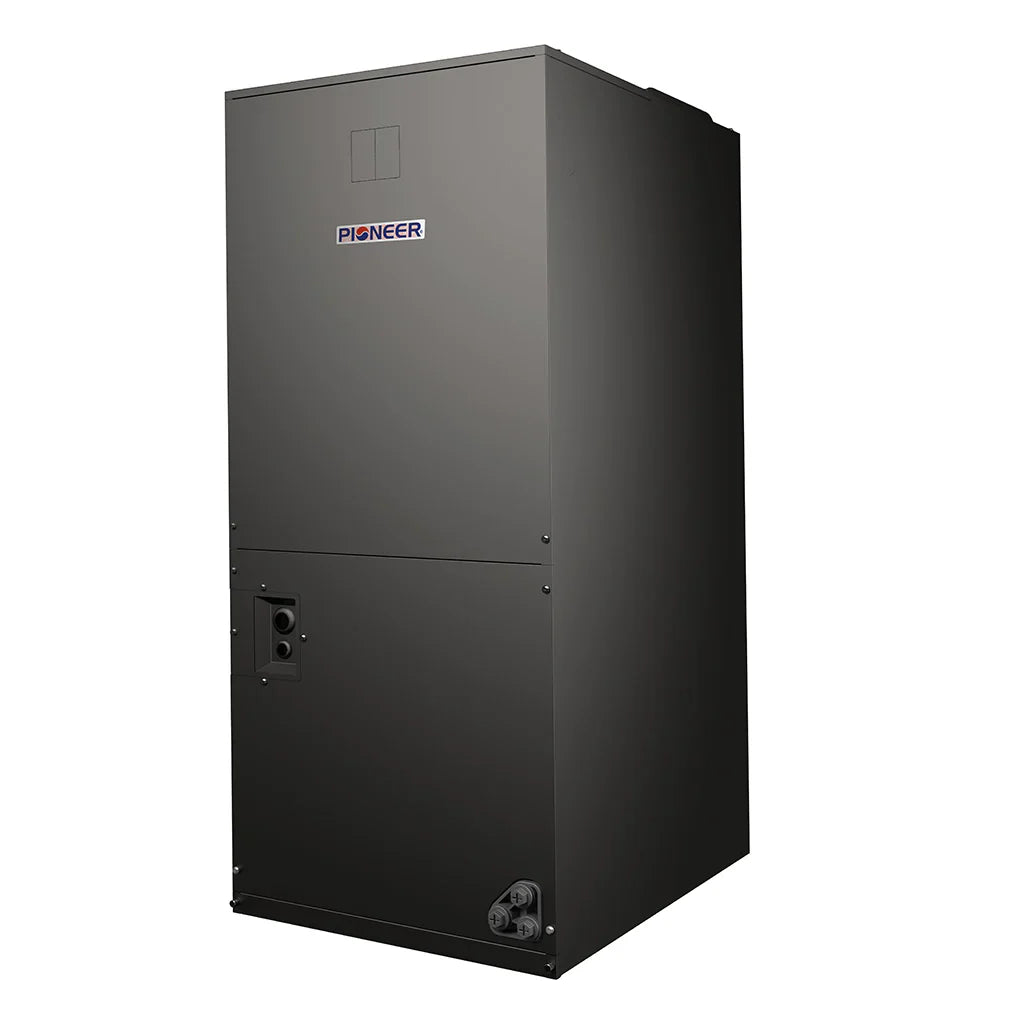

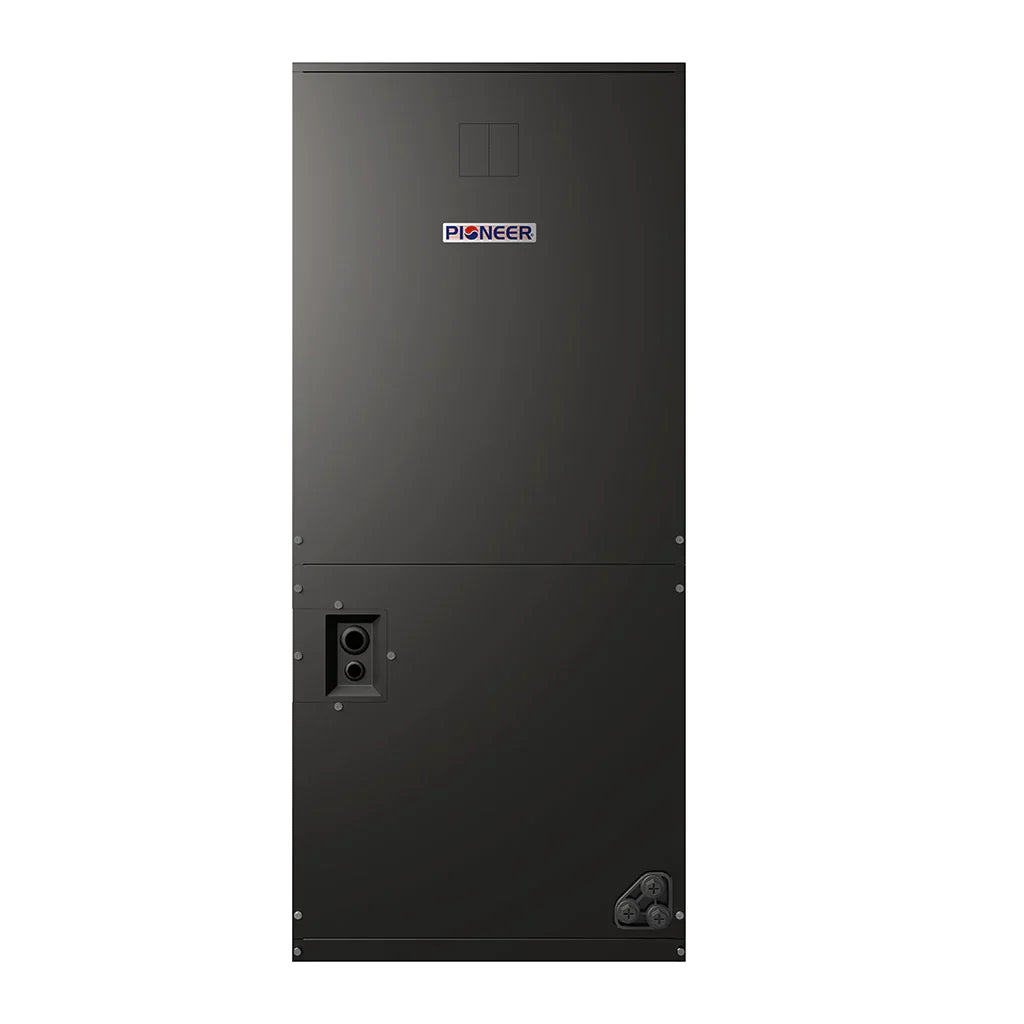

Indoor Unit (DR060GHFD18HT2):

• Airflow: 1706 CFM
• Sound Level: 60 dB(A)
• Fan Motor Type: Multi-Speed ECM
• Dimensions (W×D×H): 22 × 24 × 53-7/8 in
• Weight: 187 lbs (Net) / 214 lbs (Gross)

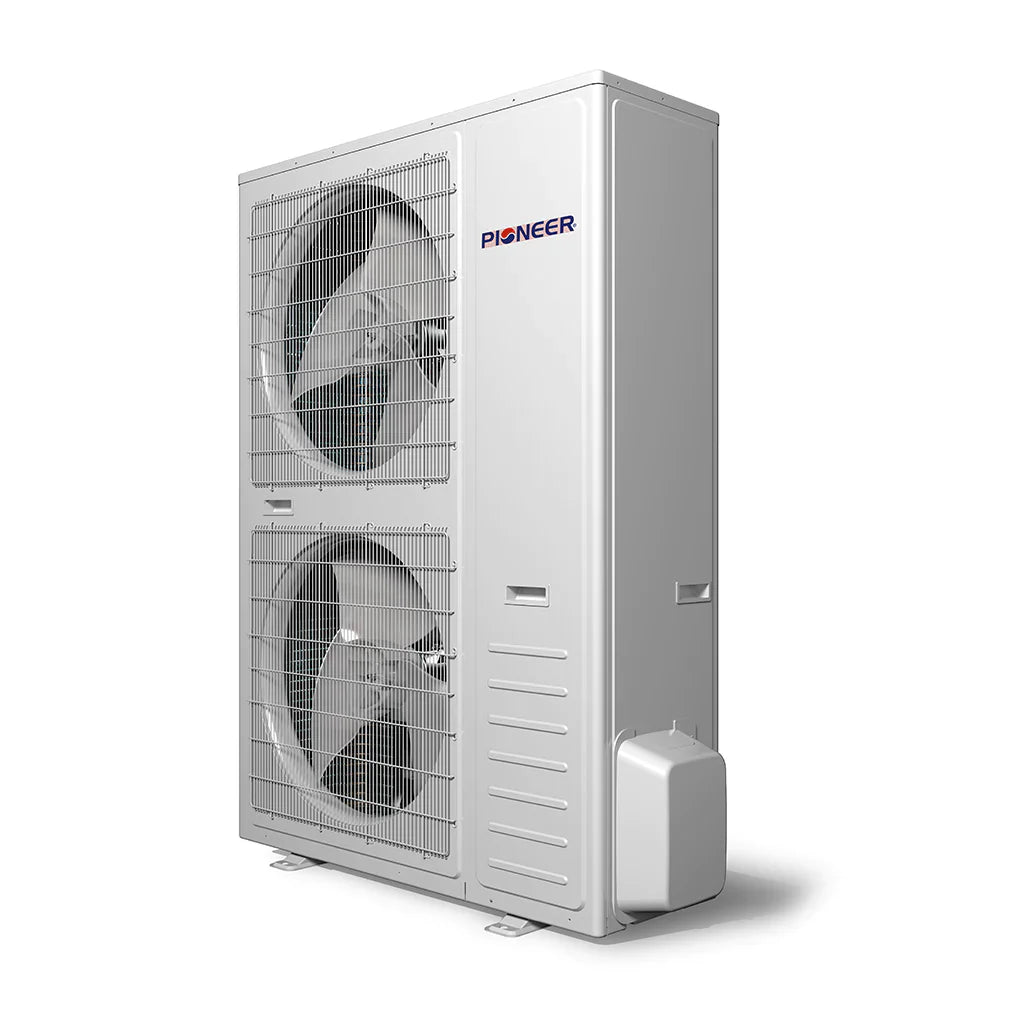

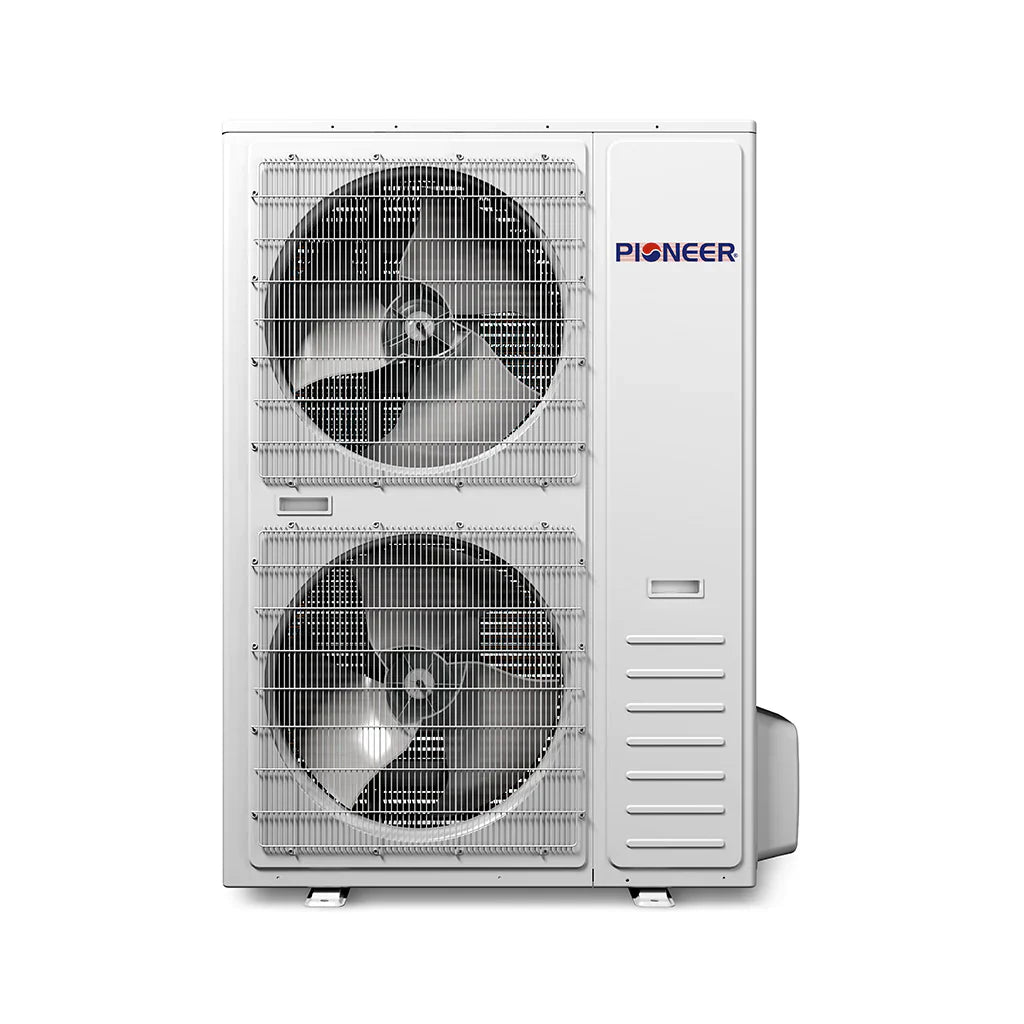

Outdoor Unit (YH4860GHFD18R2):

• Sound Level: 65 dB(A)
• Metering Device: EXV
• Dimensions (W×D×H): 37-3/8 × 13-3/8 × 54-1/2 in
• Weight: 251 lbs (Net) / 278 lbs (Gross)

Smart & Compliance Features

✔ Advanced twin rotary inverter compressor for efficient operation
✔ Supports long refrigerant line runs up to 246 ft.
✔ Pre-charged outdoor unit for easy installation
✔ AHRI-certified & ETL-listed for quality assurance
✔ 5-Year Limited Parts & Compressor Warranty
